Universal LED Interior Lighting Panel

Product image 1
1 / 9

Universal LED Interior Lighting Panel

COB (Chips On Board) is the latest technology in packaging LEDs together to produce a combined light source, resulting in a very broad and uniform light being emitted over 180°.

With a colour temperature of 4300k (natural white), COB produces increased light output without compromising on light quality while minimising current draw.

FEATURES

  • COB panels have many advantages over standard single placed SMD’s
  • Even lighting distribution being emitted over 180°
  • Up to 3 times more intensity than standard 5050 SMD’s
  • More light output per surface area
  • Super thin, less than 2.8mm in total thickness

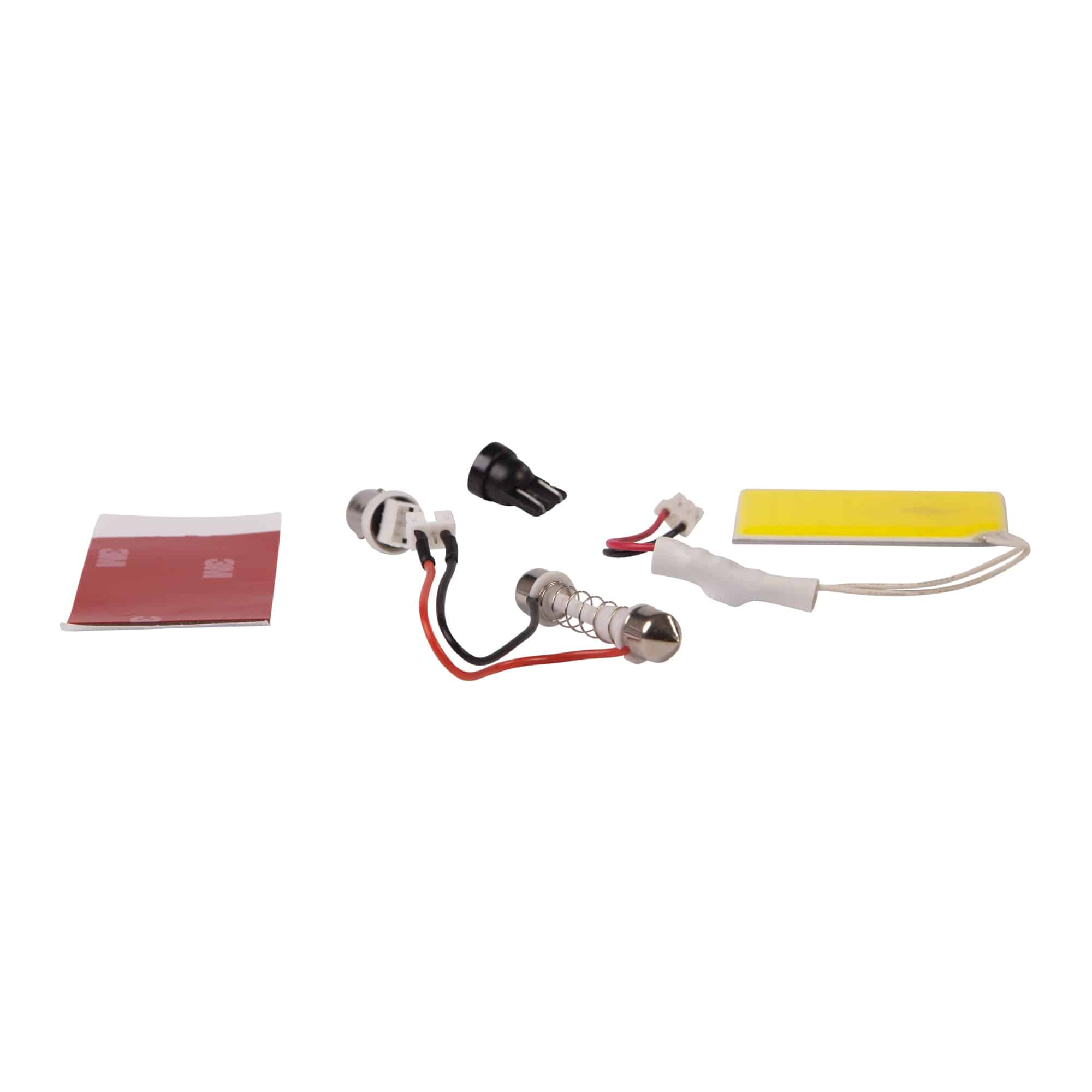

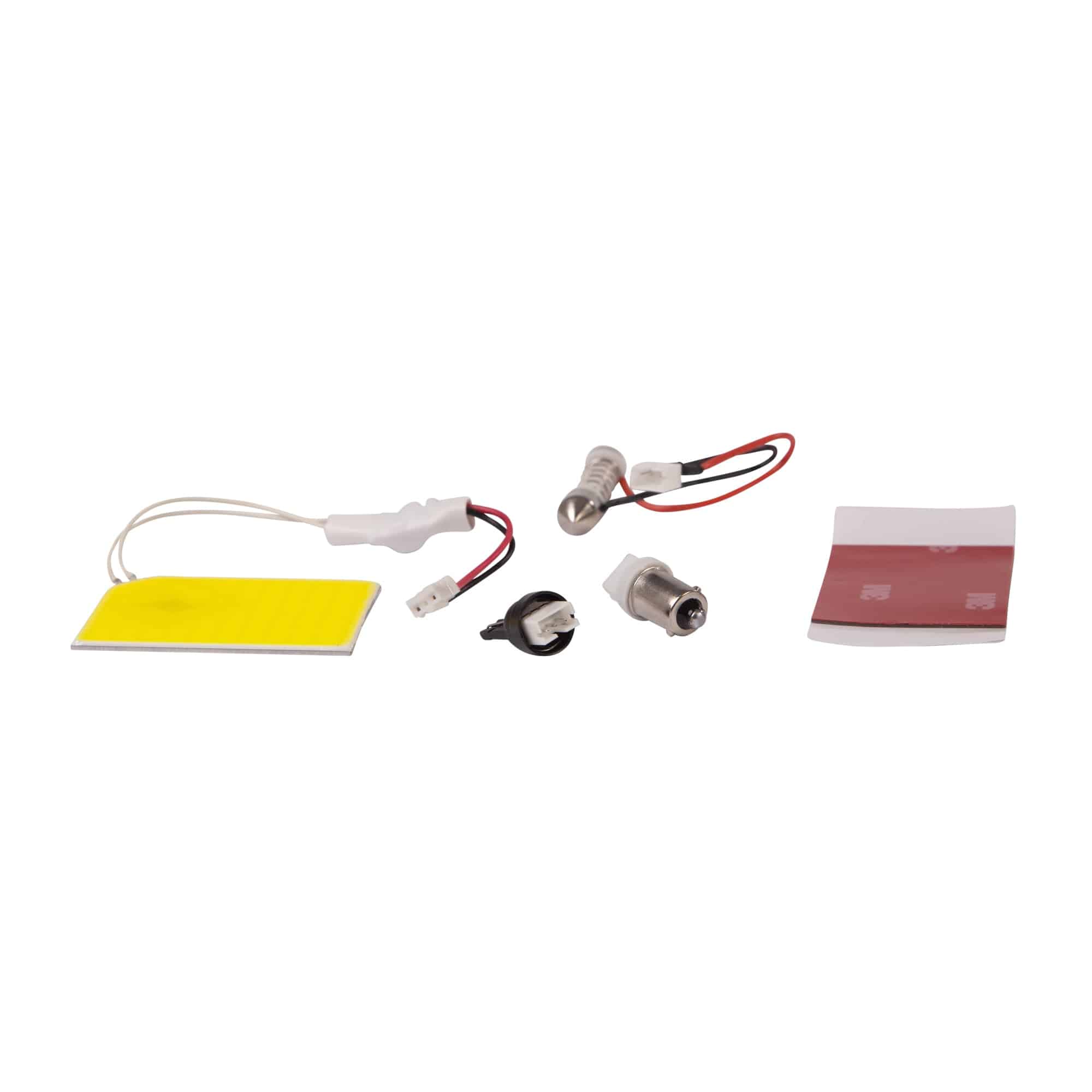

  • Not polarity sensitive so all the supplied adaptors can be fitted in any orientation
  • Fully regulated IC controlled external driver circuit
  • Wide voltage range of 9V-36V DC

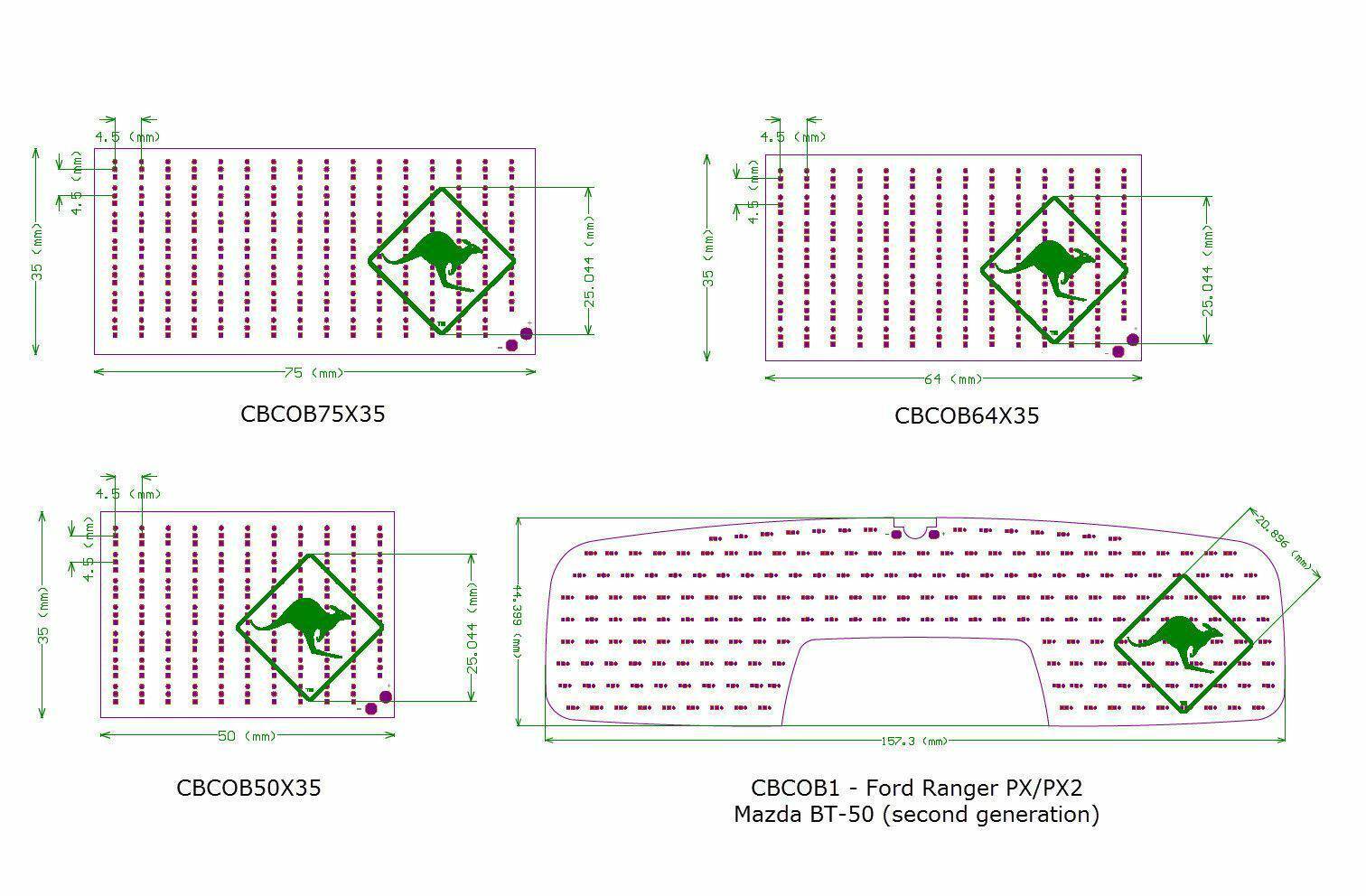

SPECIFICATIONS :

SIZE

Power  (Watts)

Amps @ 12V

Lumen (Effective)

Chip Quantity

Voltage range

50×35mm

3.5W

0.29

249

76

9-36V

64×35mm

3.7W

0.31

282

97

9-36V

75×35mm

4.9W

0.41

359

111

9-36V

A standard 28mm long halogen festoon generates 3 watts of power, produces 29 lumens of light and consumes 0.25 Amps @12v (reference Osram P# 6428)



NEED TO DETERMINE THE IDEAL COB PANEL SIZE FOR YOUR VEHICLE?

  • Step 1: Remove the existing interior light cover
  • Step 2: Measure for the optimum vertical space as shown
  • Step 3: Measure for the optimum horizontal space as shown
  • Step 4: Reattach the cover of your interior light
  • Step 5: Refer to the above COB panel sizing and ensure your optimum allowable space does not exceed the Lightforce options.
